Description

POLISH MANUFACTURER based on sockets from the world-renowned company PCE

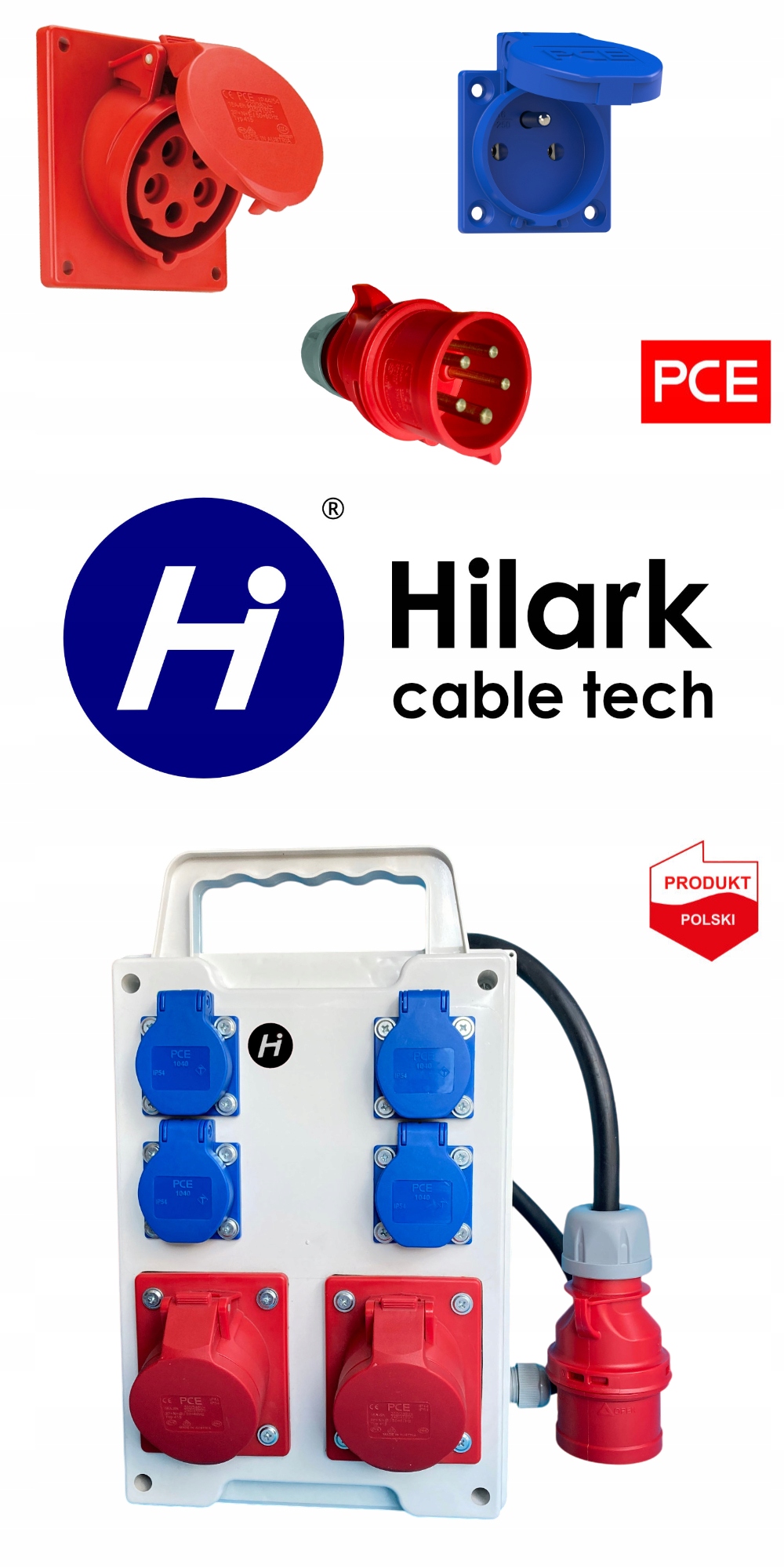

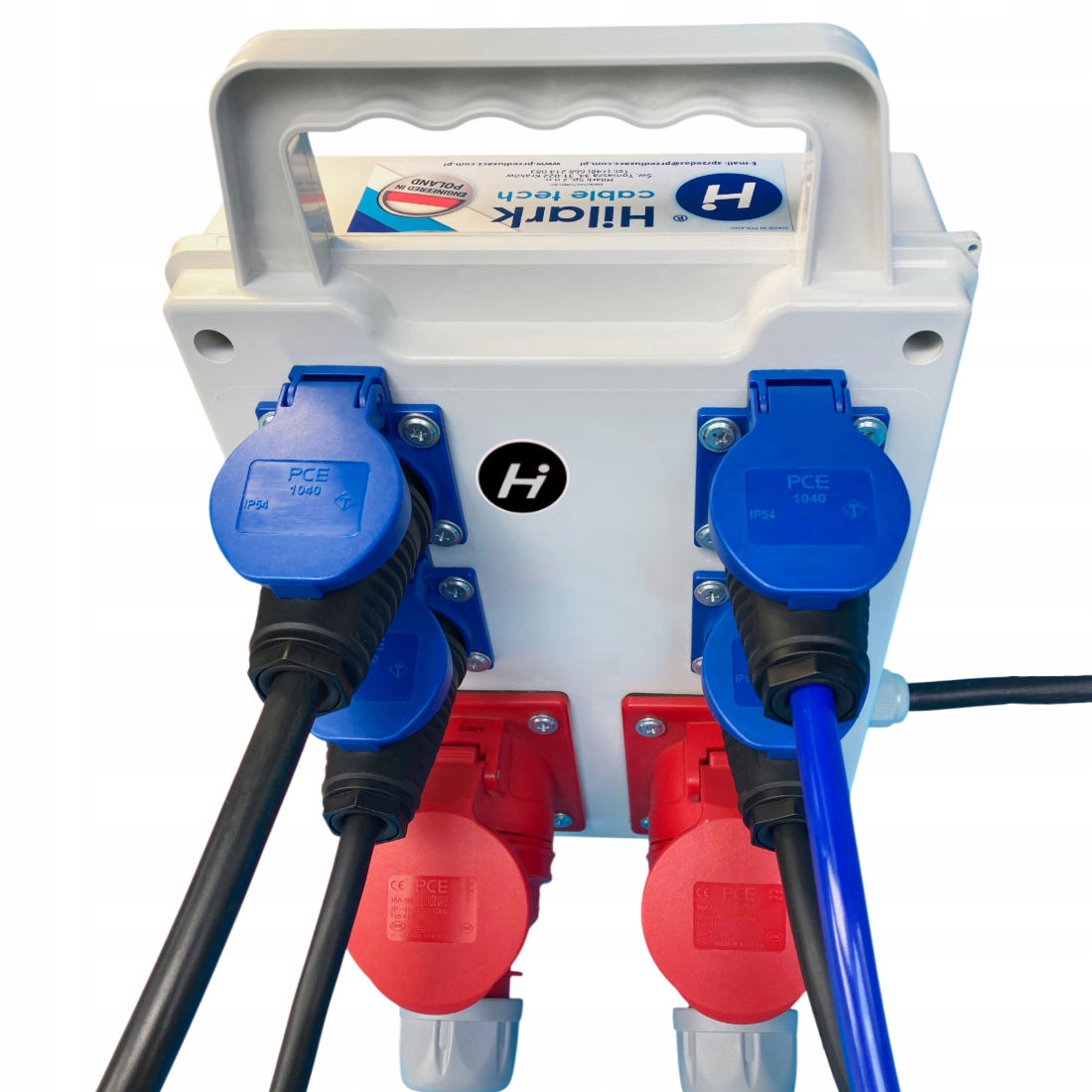

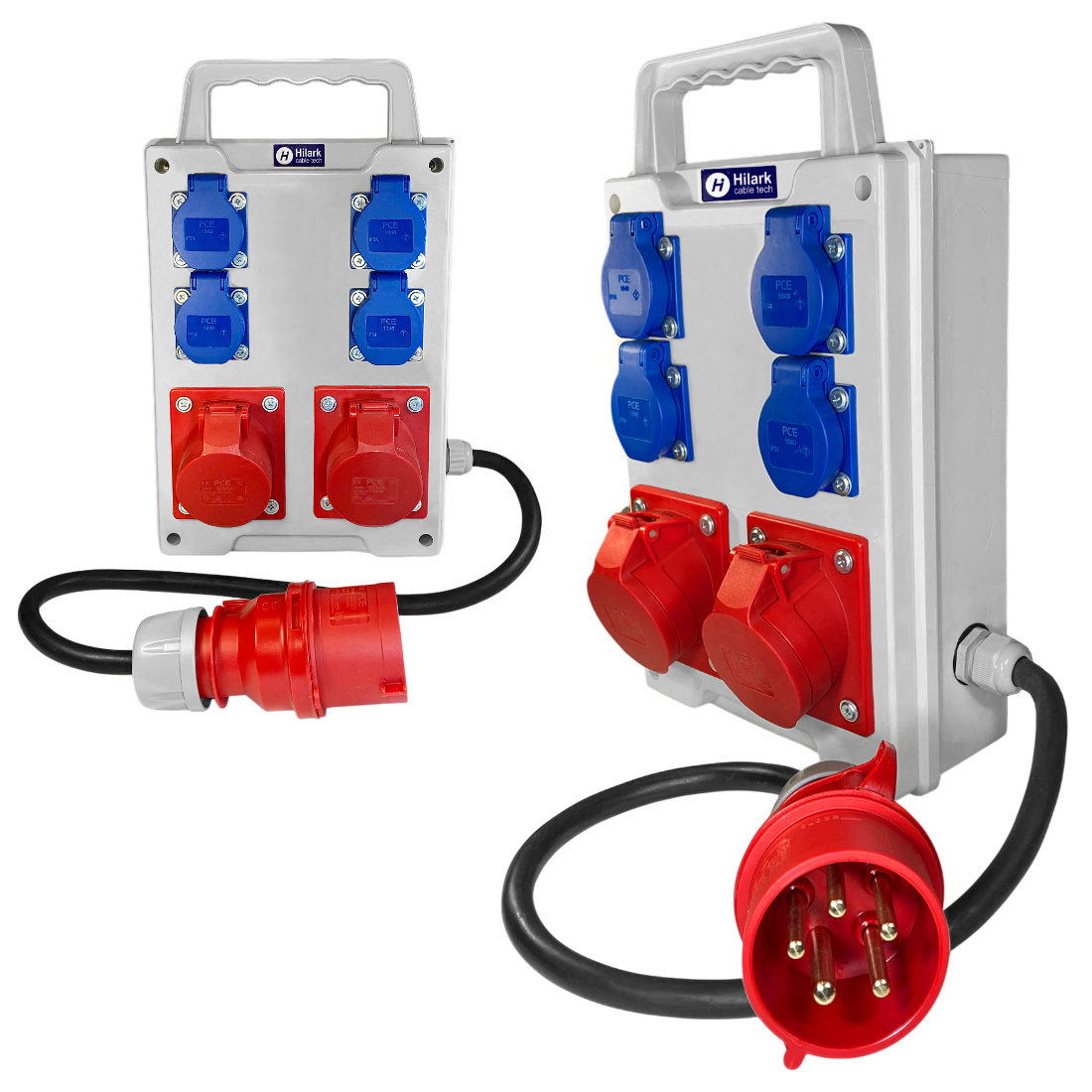

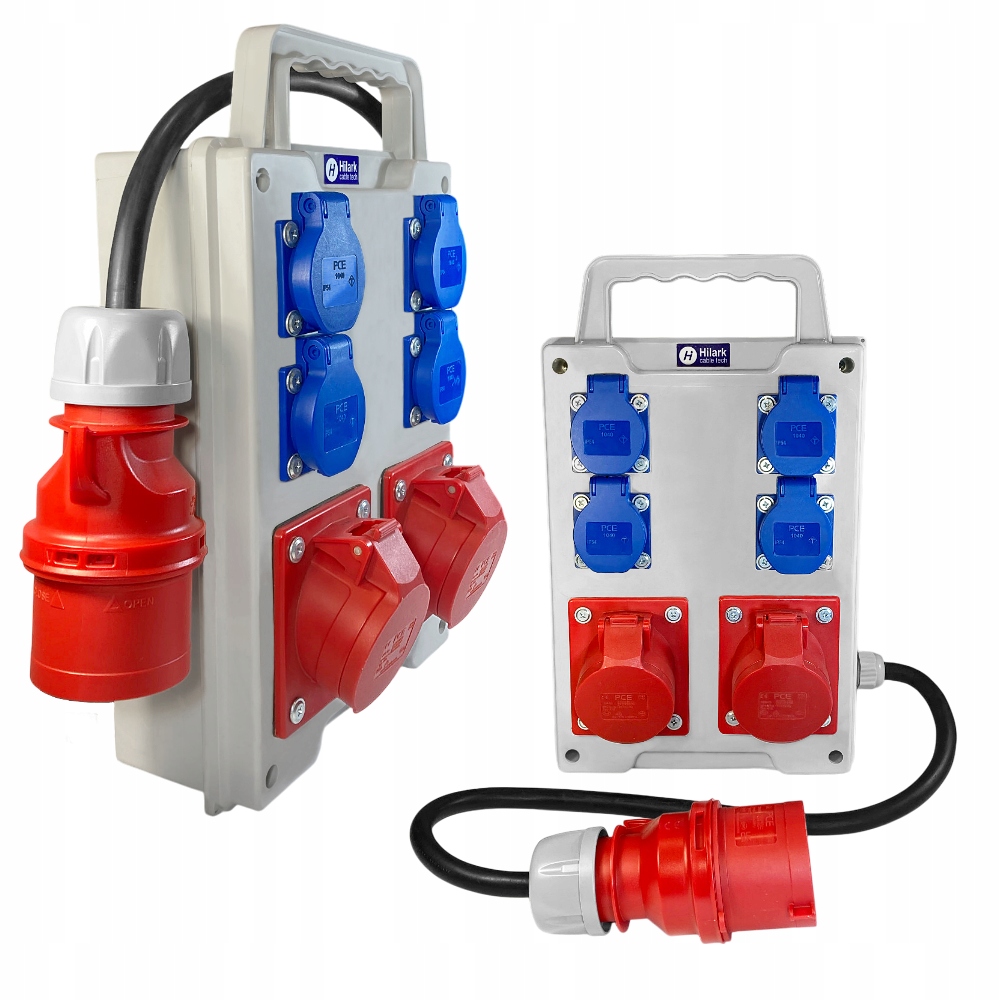

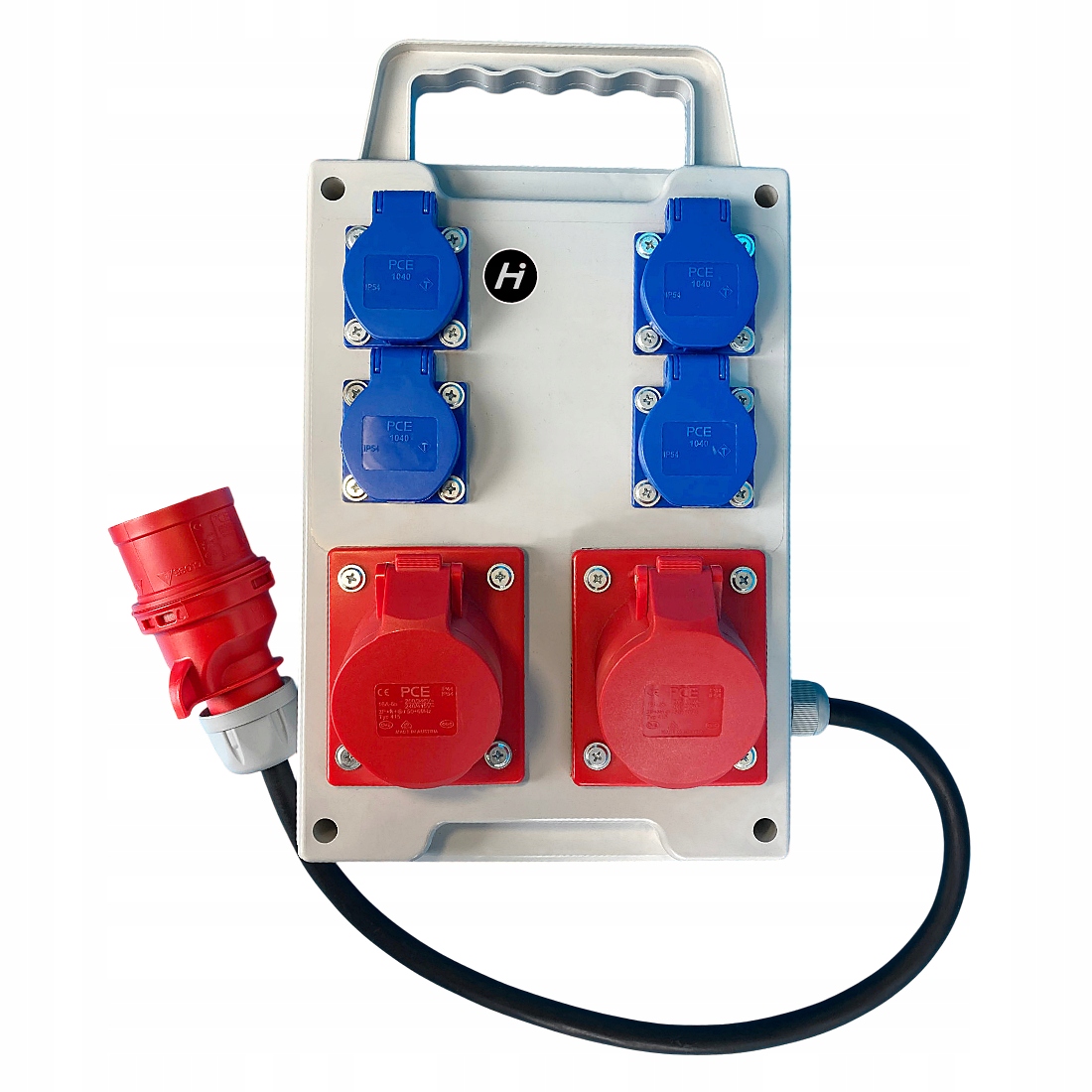

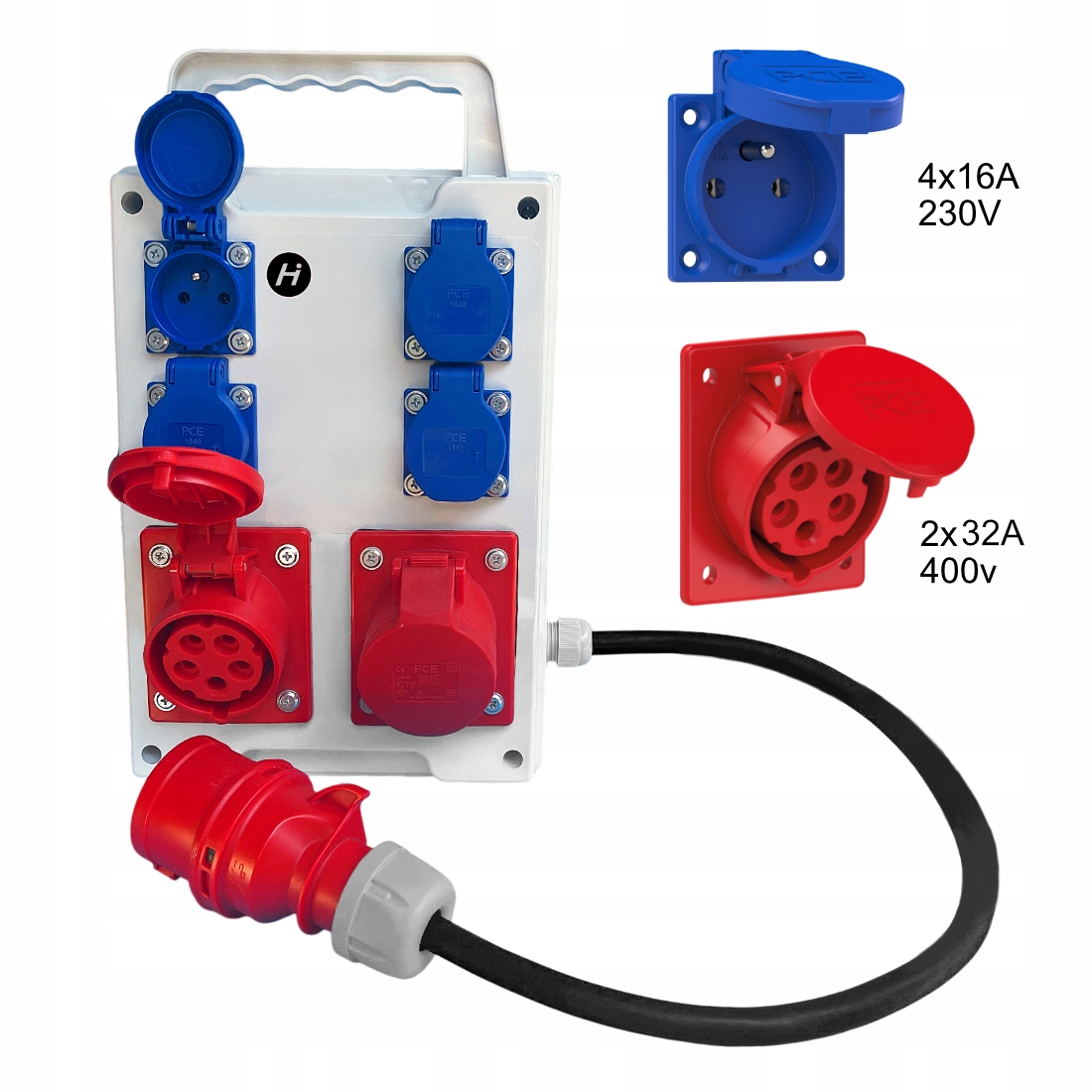

Portable construction site Power Distribution Unit based on sockets from the reputable company PCE, fully wired

SOCKETS 2 x 32A/5P 6H PCE + 4 x 1040-bs 230V + cable H07RN-F 5G6 + plug 32A/5P PCE 025-6

Power Distribution Unit equipment:

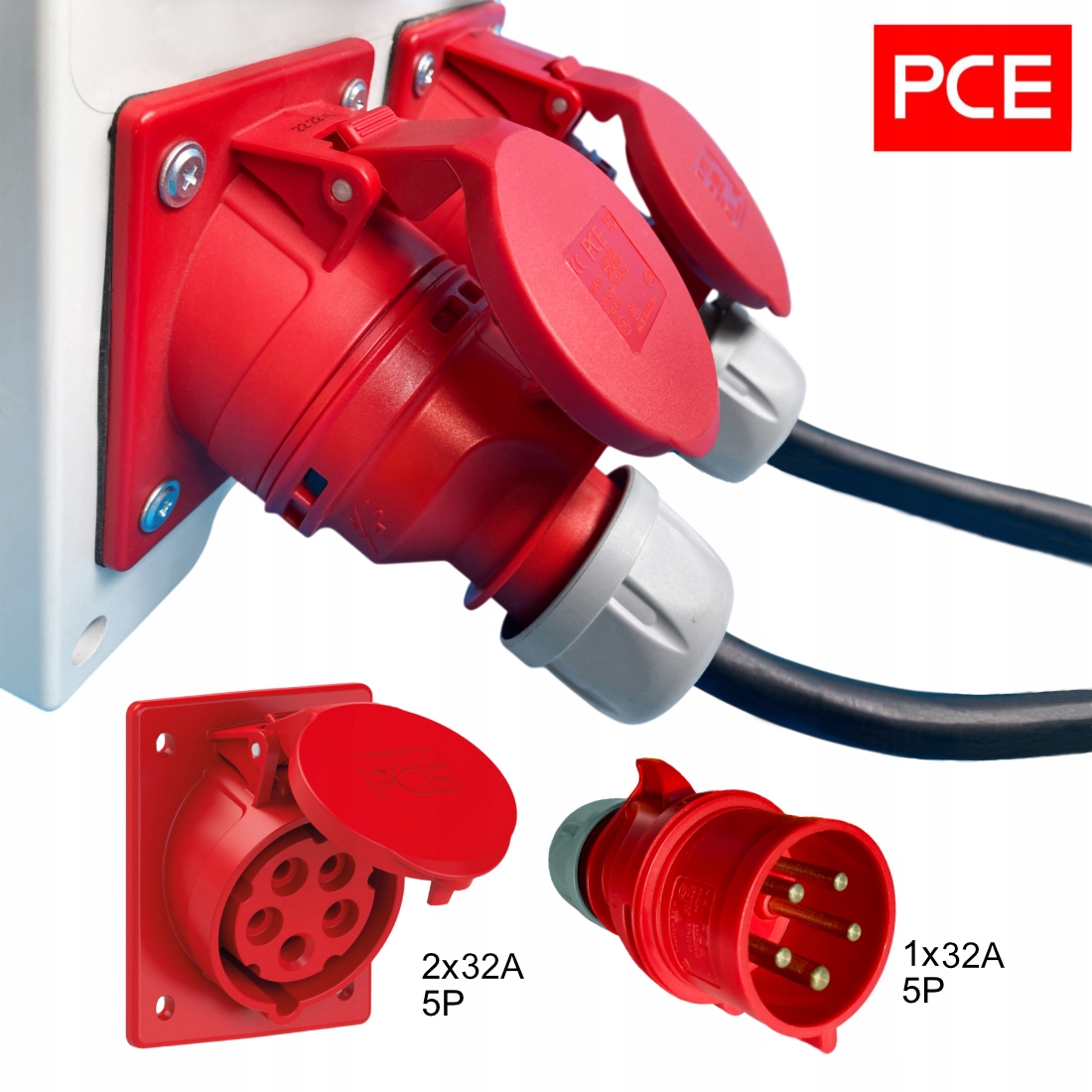

• 2 x PCE sockets 32A 425-6 5P 6H 400V IP44
• 4 x PCE socket 1040-bs single phase with earth pin 16A 230V IP54
• Each single phase PCE 1040 IP54 socket is protected by a T10A fuse, with option for outdoor socket

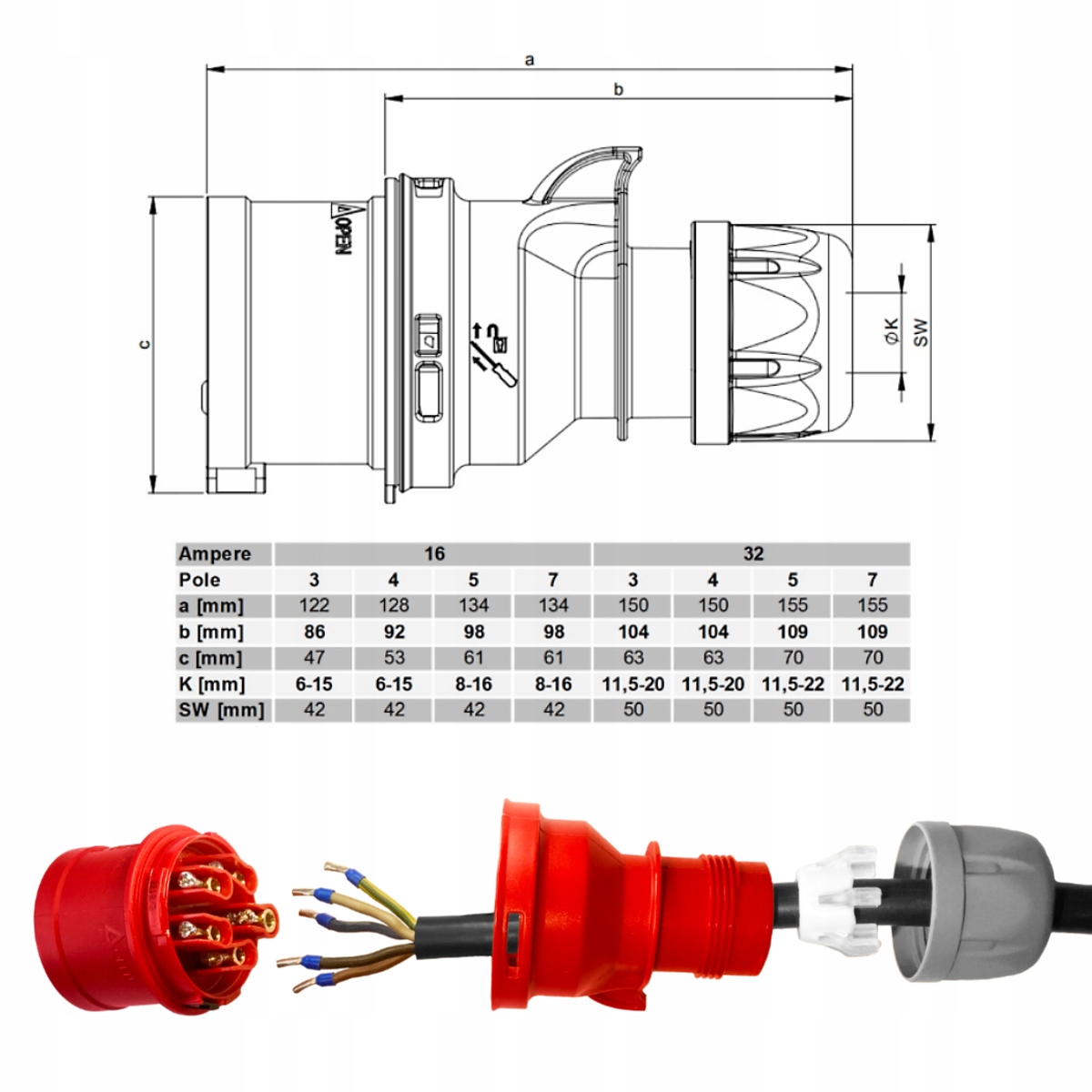

• power plug PCE 025-6 32A 5P cable 5G6mm2
• high quality sealing gland for cable entry from the Power Distribution Unit, 2 seals
• earthing conductors connected to a brass terminal busbar Z and N, additionally insulated
• sockets 16A 230V wired with 2.5mm² conductor
• sockets 32A 400V wired with 6mm² conductor
• Protection Rating (IP) of 3-phase sockets: IP44,
• Protection Rating (IP) of single phase sockets: IP54,
• overall Protection Rating (IP): IP44/IP54,
• carry handle for convenience and safe transport,
• cable length approx. 25m

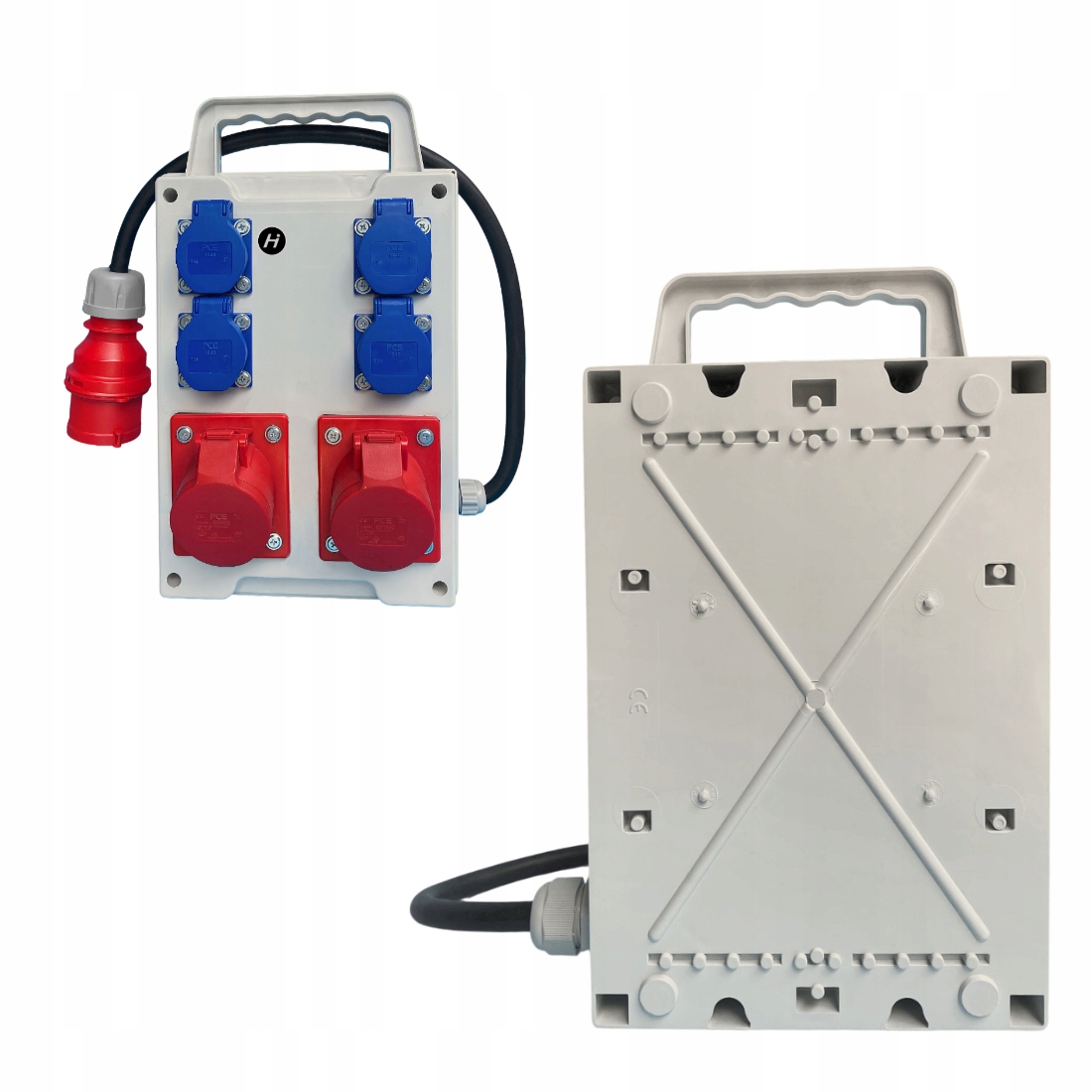

Power Distribution Unit fully mobile and ready to use.

Only sockets from reputable manufacturers will give you SAFETY and satisfaction at work

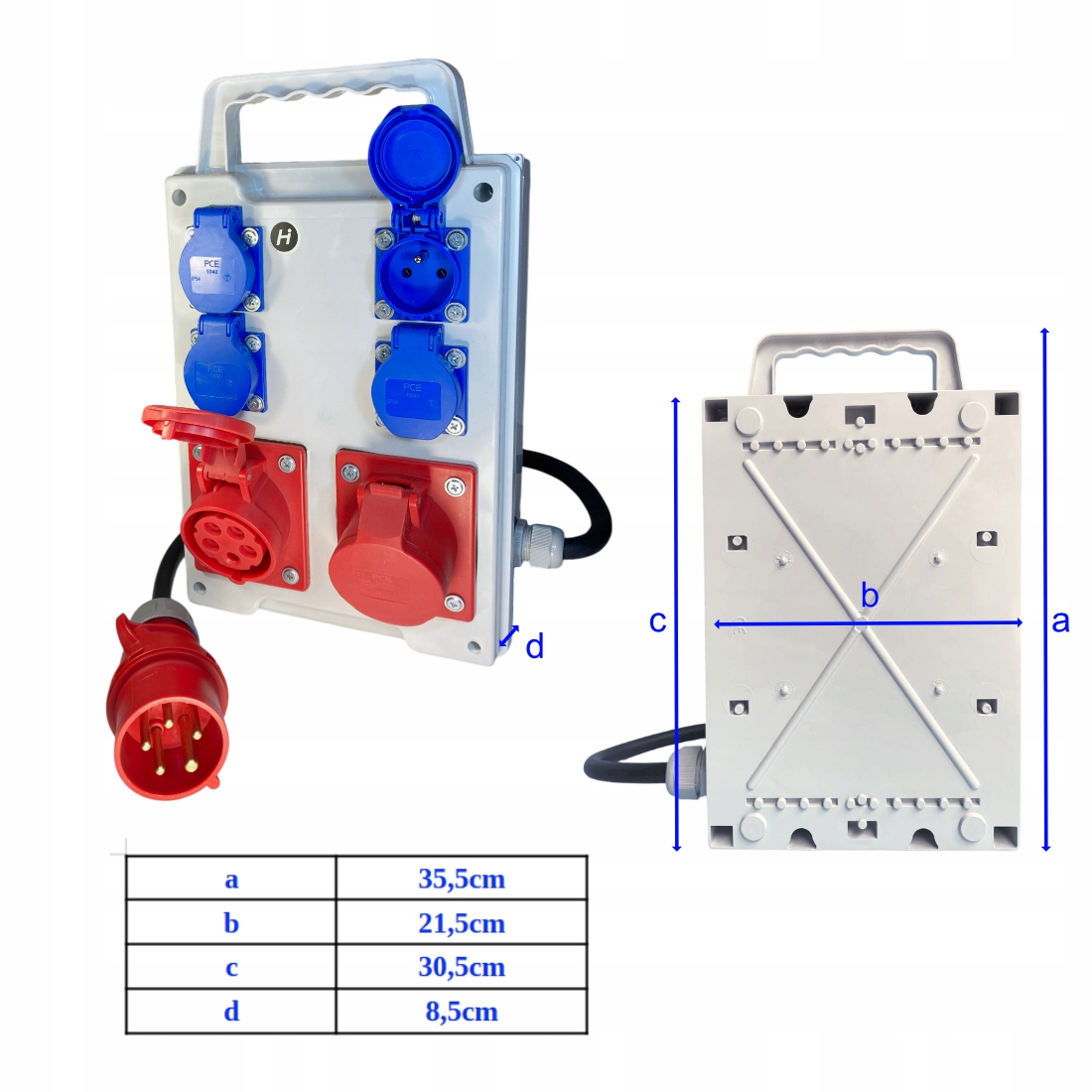

DIMENSIONS;

• total height: 35.5cm
• height without handle: 30.5cm
• width: 21.5cm
• depth: 8.5cm

For over 20 years we have been delivering solutions that combine durability, functionality and safety

100% COPPER CONDUCTORS

MADE IN POLAND

*the item for sale is one Power Distribution Unit with one plug

Images shown are for illustrative purposes only
