Description

SOLAR EXTENSION CORD, 1x4mm² RED 0.25m

Solar extension cord on a flexible single-core cable designed for photovoltaic installations, with a multi-strand copper conductor, insulated and sheathed with cross-linked halogen-free material. Cable sheath: special cross-linked halogen-free material in accordance with EN 50267-2, EN 50396, EN 60811, in the temperature range -40 °C +125 °C resistant to UV, ozone, ammonia, and chemical substances. Cable insulation: special cross-linked halogen-free material in accordance with EN 50267-2, EN 50396, EN 60811 in the temperature range -40 °C +125 °C resistant to UV, ozone, ammonia, and chemical substances

application: specially designed for connecting elements of photovoltaic systems inside and outside buildings and equipment with high mechanical requirements, extreme weather conditions, for permanent installation, for free movement, expected service life is 25 years

cable technical data:

• color: red
• cable with insulation and sheath made of cross-linked halogen-free material;
• 100% tinned copper multi-strand conductor class 5, according to standard PN-EN 60228
• Rated voltage: 1.0/1.0 kV AC
• bending radius: D<8, 4xD, D-outer diameter of the cable, D≥8, 6xD, D- outer diameter of the cable

Permissible operating temperature:

• max. conductor temperature: -40°C to +125°C
• ambient temperature: -40°C to +90°C

MANUFACTURED IN POLAND

OUR CABLES ARE 100% COPPER

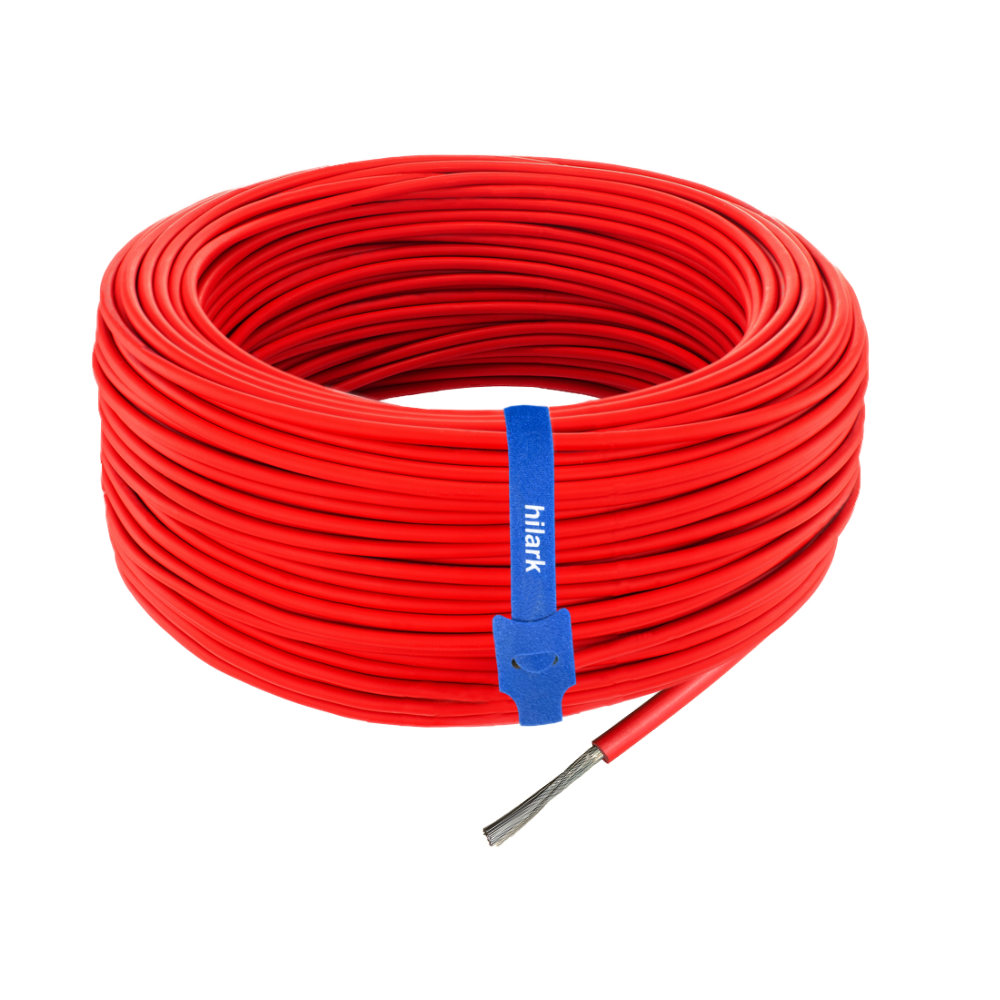

*the photo with the blue strap is an example of storing a cable or extension cord. The strap is available for purchase in our other listings.

The presented photos are for illustrative purposes only
