Black photovoltaic solar cable 1×6 mm² 10m

12,63 € (10,27 € netto)

Lowest price in the last 30 days: 11,72 €

Photovoltaic solar cable 1×6 mm²

SKU: 1183039902a/10/C Category:

Description

SOLAR PHOTOVOLTAIC CABLE H1Z2Z2-K 1x6mm² 10m

Price given per 25mb. = 1 pc.

Very high quality flexible cable single-core, designed for photovoltaic installations, with a multi-wire copper stranded conductor, insulated and sheathed with cross-linked halogen-free material; characterized by high environmental durability and resistance to the harmful effects of UV radiation as well as atmospheric conditions.

Application: in PV installations, in connections between photovoltaic modules, between module strings and for connecting module arrays to the inverter; for wiring any type of photovoltaic system. It can be used both indoors and outdoors, as well as directly in the ground. The expected service life is 25 years. Cable manufactured in accordance with the stringent European standard EN 50618 and PN-EN 60228, and only such cables are permitted for use in PV installations for safety reasons (only properly manufactured cables that have passed long-term tests meeting such demanding requirements receive certification from an accredited laboratory).

H1Z2Z2-K 1x6mm² technical data:

  • color: black
  • cable with insulation and sheath made of cross-linked halogen-free material;
  • conductor 100% tinned copper,
  • 1 core stranded class 5, twisted wires which ensures greater safety and allows for higher energy transfer
  • cable can be laid in the ground in accordance with standard guidelines
  • working voltage 1.5kV (1.8kV) DC (according to EN 50618)
  • rated voltage 1.0/1.0 kV AC
  • resistant to UV radiation and ozone
  • good mechanical properties, resistant to ammonia, various types of acids and bases
  • max. conductor temperature during cable operation: 90°C, min.
  • ambient temperature for permanently laid cables: -40°C;
  • min. ambient temperature during cable installation: -25°C;
  • max. conductor temperature during operation: 120°C
  • max. conductor temperature during short circuit: +250°C
  • Fire reaction class according to CPR: Eca
  • has a HAR certificate – a reserved European mark confirming that the cables meet the requirements of the relevant strict European standards (EN)
  • meets the stringent requirements of PN-EN 50618 and PN-EN 60228 standards, and also has a very high fire reaction class (only cables according to EN 50618 standard are called H1Z2Z2-K and meet safety standards, therefore use only certified cables that will protect you from damage to very expensive solar equipment)

100% Polish product

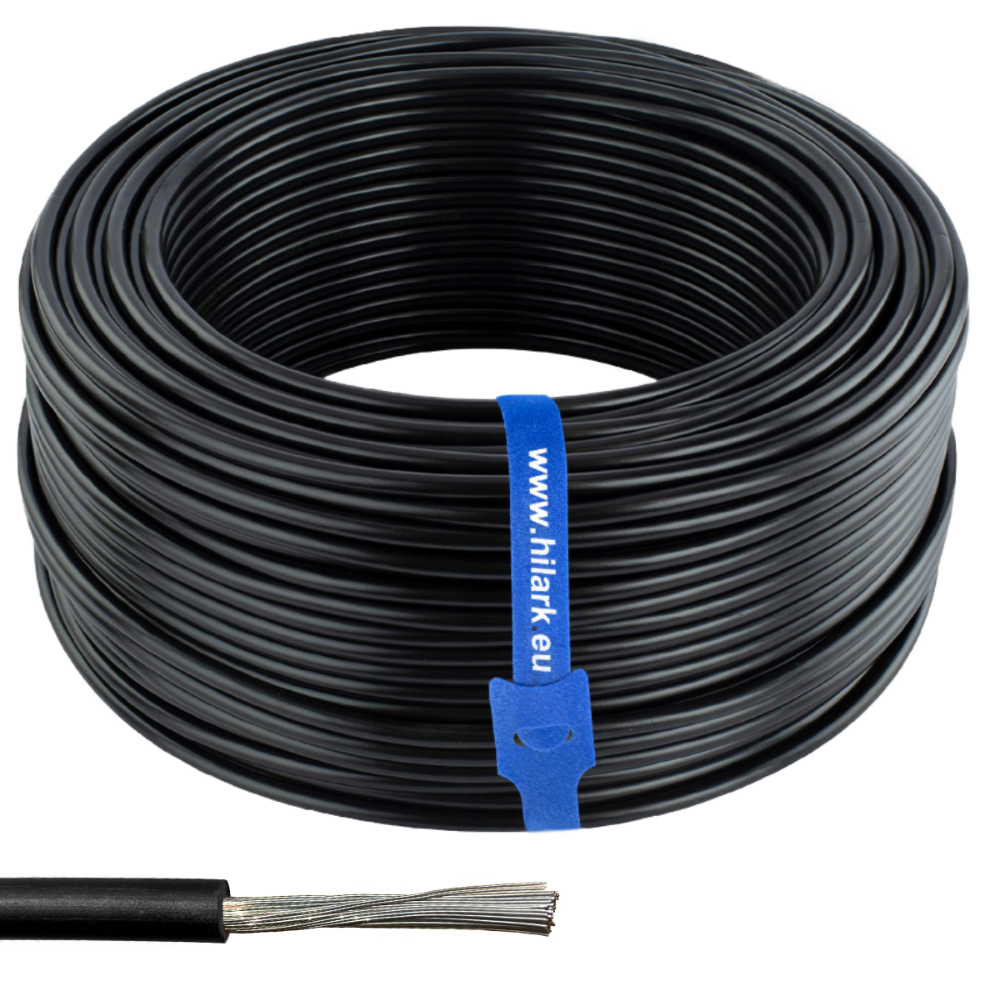

*the photo with the blue strap is an example of storing a cable or extension cord. The blue strap is available for purchase in our other listings. The presented photos are for illustrative purposes only. The actual color of the product may slightly differ from the one shown in the photos.

Safety instructions: hilark.eu/gpsr/en.
